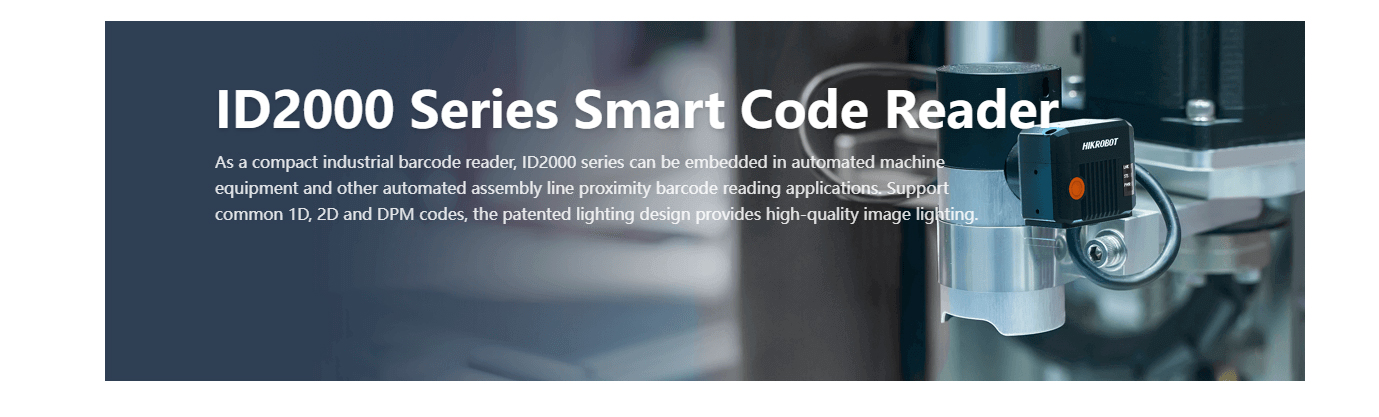

ID2000 Series Industrial Barcode Reader

Product Introduction

Features

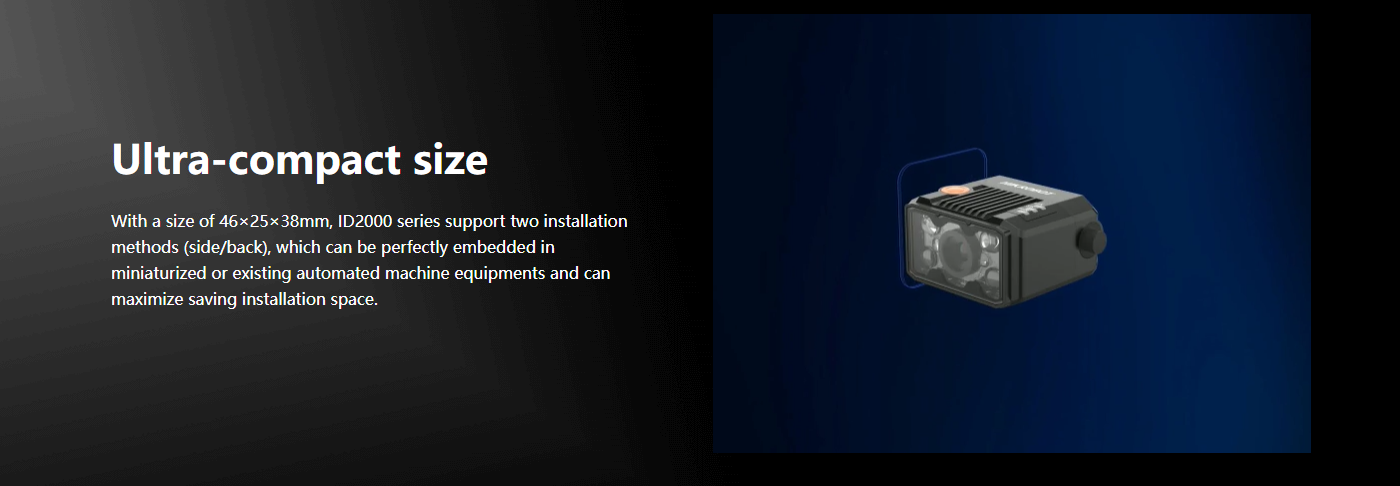

1. Ultra-compact design for diverse machinery and tight workspaces.

2. Aviation connector design enables single-cable connection for simplified wiring.

3. Integrated LED aiming light clearly indicates target field of view for quick installation and commissioning.

4. External focus knob provides visual focus plane adjustment.

5. Comprehensive I/O interfaces and plug-in power connector facilitate field wiring.

Ordering Model

MV-ID2004M-06S-RBN

*Product specifications may vary due to environmental factors. The company assumes no liability for any resulting consequences.

Product detailed parameters



Dimensions and Model Specifications


Model	Model	MV-ID2004M-06S-RBN
Model	Name	400,000 - pixel Red Light Gigabit Small Barcode Reader

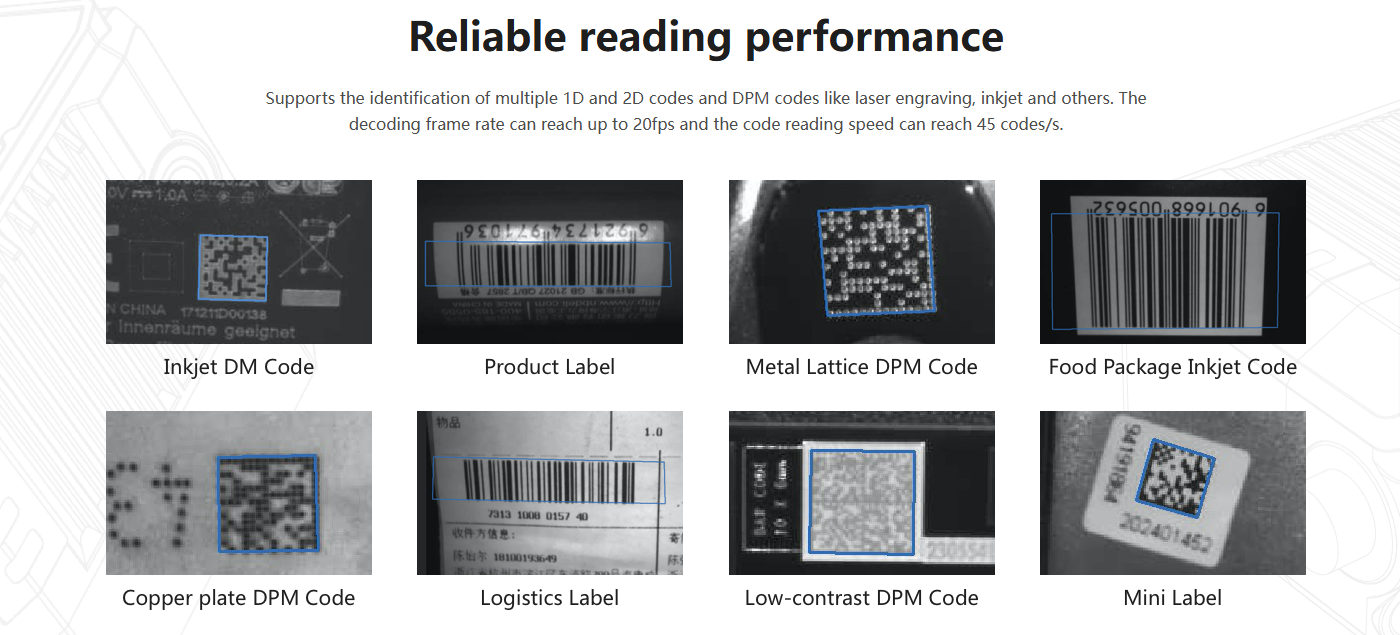

Performance	Barcode Types	One - dimensional codes (Code 39, Code 93, Code 128, ITF14, ITF25, Codabar, EAN8, EAN13, UPCA, UPCE, etc.); Two - dimensional codes (QR Code, Data Matrix, etc.)
	Maximum Processing Frame Rate	60 fps
	Maximum Reading Speed	41 codes per second
	Sensor Type	CMOS, global shutter
	Pixel Size	6.9 μm × 6.9 μm
	Sensor Size	1/2.9”
	Resolution	704 × 540
	Exposure Time	16 μs ~ 1 sec
	Gain	0 ~ 15 dB
	Black/Color	Black and white
	Communication Protocol	SmartSDK,TCP Client,Serial,FTP,TCP Server, Profinet,Melsec/SLMP,Ethernet/IP,ModBus,UDP,Fins
Electrical Characteristics	Data Interface	Fast Ethernet(100 Mbit/s)
	Digital I/O	17- pin M12 interface provides power and I/O, including 1 - way non - isolated input (Line 2), 1 - way non - isolated output (Line 3), 2 - way bidirectional configurable non - isolated I/O (Line 0/1), RS - 232, supports triggering devices via side panel buttons
	Power Supply	12 ~ 24 VDC
	Maximum Power Consumption	3.8 W@24 VDC
Structure	Focal Length	6.72 mm
	Lens Interface	M10-Mount, manual focus
	Working Distance	40 ~ 120 mm
	Ambient Illumination	0 ~ 50000 lux
	Light Source	Red
	Aimer	Green LED
	Indicators	Power indicator PWR, network indicator LNK, status indicator STS
	Dimensions	46 mm × 38 mm × 25 mm
	Weight	Approximately 160 g
	IP Protection Rating	IP65
	Temperature	Operating temperature 0 - 50°C; Storage temperature - 30 - 70°C
	Humidity	20% ~ 95%RH，no condensation
General Specifications	Software	IDMVS
General Specifications	Certification	CE,RoHS,KC
