IDH3000 Series Handheld Barcode Readers

Product Introduction

Features

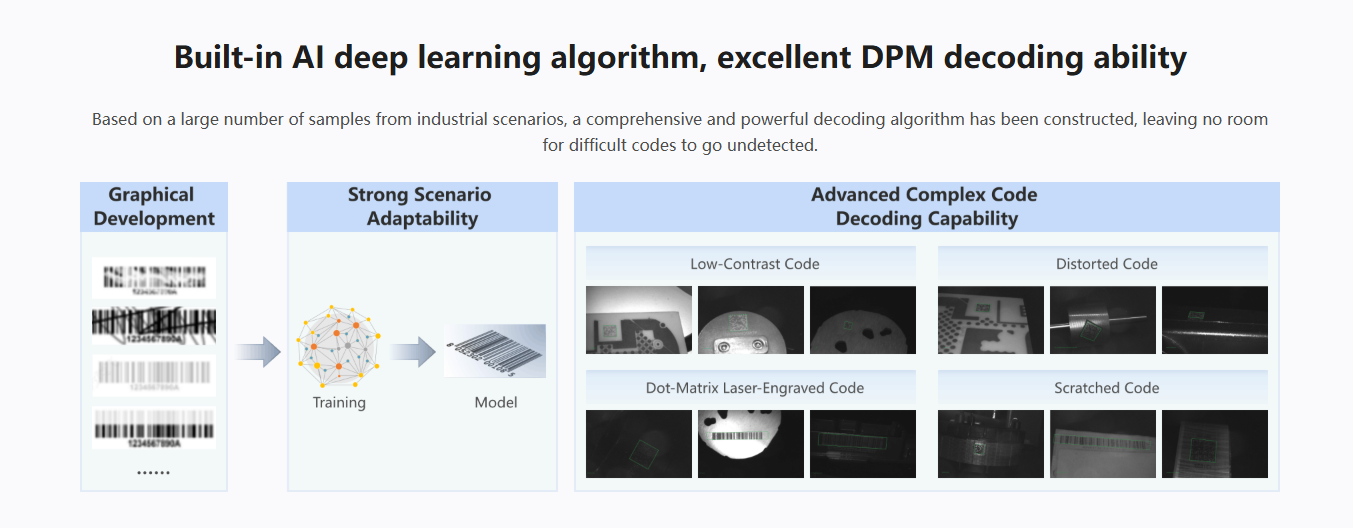

1. Utilizes fully self-developed decoding modules and algorithms to efficiently read challenging industry codes, including broken frames, ink overflow, ink deficiency, laminated codes, and damaged codes

2. Quad/octa-core 2.0GHz high-performance processor based on Android 13.0 operating system

3. 4.0-inch display with 800 × 480 screen resolution

4. Rugged industrial design with IP65 protection and 1.5-meter drop resistance

5. 4850 mAh battery ensures extended runtime with fast charging support

6. Supports rapid roaming with robust Wi-Fi performance

7. Stylish appearance, lightweight and compact

Ordering Model

MV-IDH3000/13NR/04RN/U

*Product specifications may vary due to environmental factors. The company assumes no liability for any resulting consequences.

Product detailed parameters





Dimensions and Model Specifications

Model	Model	MV-IDH3000/13NR/04RN/U
Model	Name	Industrial Wired Handheld Coder
Performance	Barcode Category	One - dimensional codes: Code 39,Code 93,Code 128,GS1- Code128,CodaBar,EAN8,EAN13,ISBN,ISSN,ITF25,ITF14,UPCA,UPCE Two - dimensional codes: QR Code,Data Matrix,MicroQR,Aztec,GS1-DM,GS1-QR Stacked code: PDF417
	Minimum Barcode Precision	3 mil (One - dimensional codes)
	Sensor Type	CMOS
	Resolution	1280 × 1024
	Depth of Field	Code 39(3 mil):0 mm ~ 70 mm1 Code 128(10 mil):0 mm ~ 150 mm1 Code 39(5 mil):0 mm ~ 85 mm1 Data Matrix(5 mil):10 mm ~ 50 mm1 Data Matrix(10 mil):0 mm ~ 100 mm1
	Field of View Angle	44° (H) × 36° (V)
	Detection Angle	Tilt angle ± 60°, Skew angle ± 60°, Rotation angle 360°
	Symbol Tolerance	20 %
	Communication Protocol	SmartSDK,USB(HID/CDC),Serial (RS-232)
Electrical Characteristics	Interface	USB2.0, DC Terminal, RS-232
	Power Supply	USB 2.0:5 VDC; DC Terminal: 12 VDC ~ 24 VDC
	Current Consumption
Structure	Focal Length	4.3 mm
	Ambient Illumination	0 ~ 100000 lux
	Light Source	Red LED
	Aimer	Line Laser Aimer
	Prompt Mode	LED Indicator Light, Buzzer, Vibrator
	External Dimensions	74.4 mm × 86.6 mm × 190.2 mm
	Weight	Approximately 160g
	IP Protection Grade	IP42
	Temperature	Operating temperature: - 10 ~ 50°C; Storage temperature: - 20 ~ 60°C
	Humidity	20% ~ 80%RH, No Condensation
	Drop Height	Drop: 1.8 m, 50 times; Flip: 0.5 m, 1200 times
	Air - borne Electrostatic Resistance	± 16 kV (air discharge), ± 8 kV (contact discharge)
Laser Performance	Laser Safety Class	Class 2 laser product
	Wavelength	650 nm
	Pulse Width	8 ms
	Maximum Power	1 mW
General Specifications	Software	IDMVS
General Specifications	Certification	CE,KC
