Product Introduction

Functional Features

1. Wide dynamic range algorithm ensures precise measurement on highly reflective/absorbent materials.

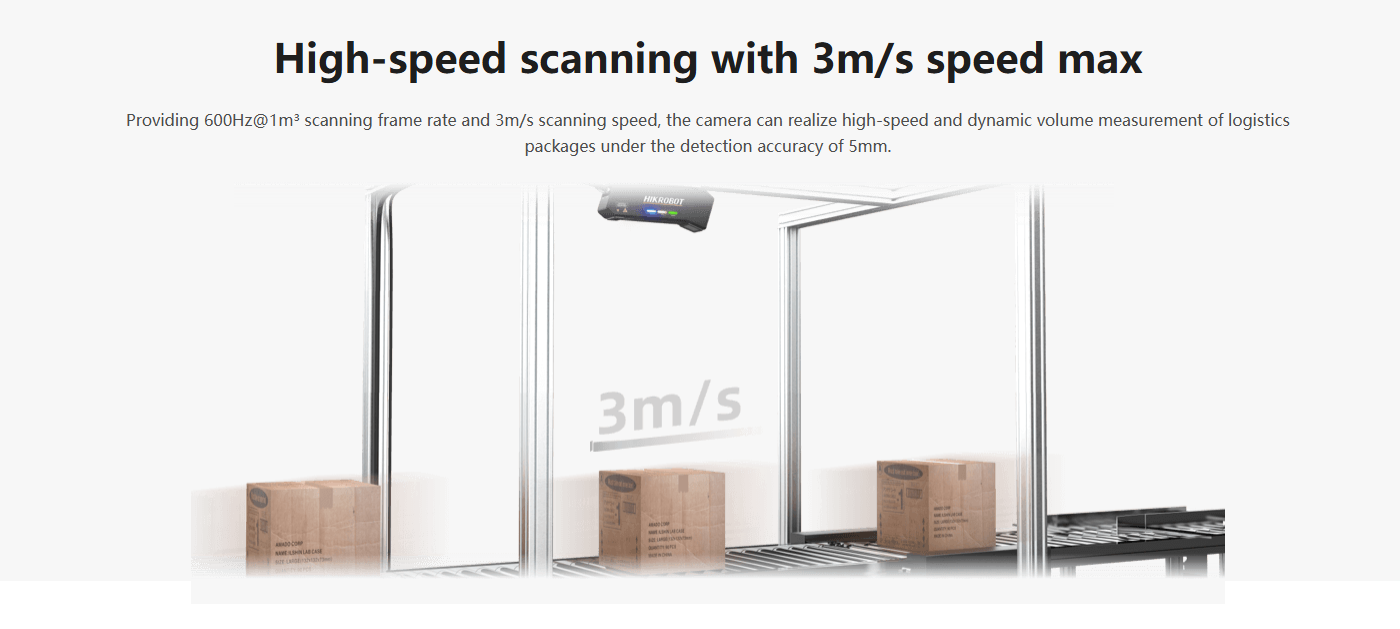

2. Efficiency optimized for speeds up to 3m/s.

3. Sub-pixel technology achieves 5mm accuracy.

4. High-power laser module with expanded dynamic range.

5. Narrowband filter for enhanced anti-interference capability.

6. Precise exposure synchronization ensures stable performance.

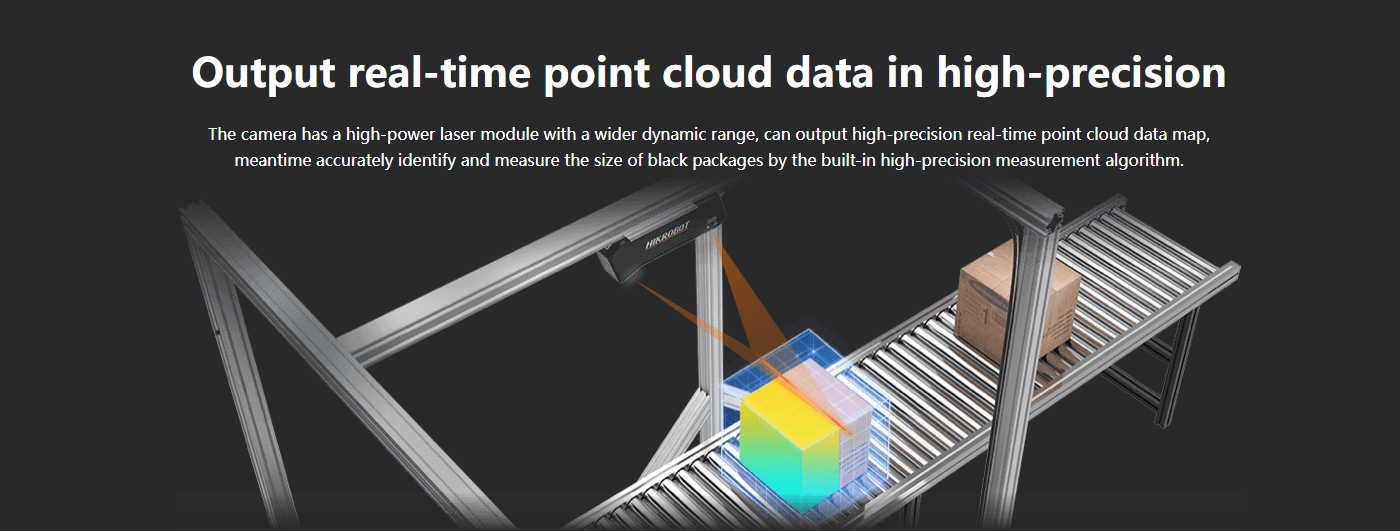

7. Supports volume (length/width/height, integrated volume), point cloud, and top-surface coordinate outputs.

Ordering Model

MV-DL2125-04H-R

*Product data may vary due to environmental factors. The company assumes no liability for any resulting consequences.

Dimensions


Specifications

Model	Model	MV-DL2125-04H-R

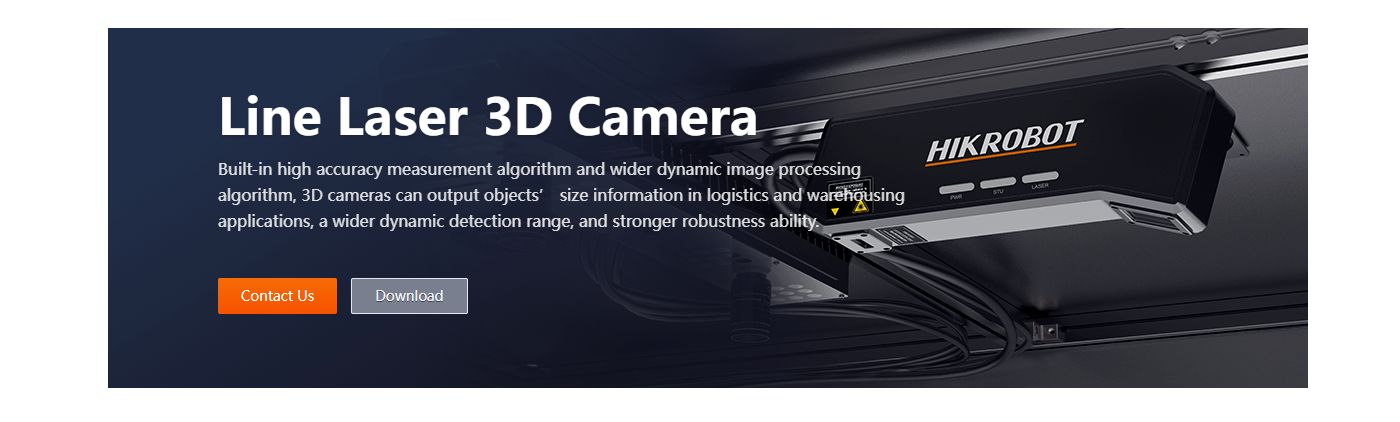

Model	Name	Line Laser 3D Camera
Performance	Near Field	1000 mm
	Far Field	2600 mm
	Clearance Distance (CD)	700 mm
	Measurement Range（MR）	1000 mm
	Detection Accuracy	± 5 mm (typical component)
	Detection Speed	3 m/s@± 5 mm detection accuracy
	Scanning Frame Rate	600 fps@1 m³ measurement range
	Data Type	Point cloud, length/width/height dimensions, integrated volume, vertex coordinates, depth map
	Trigger Mode	External trigger, barrier trigger (supports up to 15 kHz trigger signal input)
	Laser Safety Class	Class 3B
Electrical Characteristics	Data Interface	Gigabit Ethernet(1000 Mbit/s)
	Digital I/O	12-pin M12 interface for I/O (includes 3-channel optocoupler isolation inputs (Line 0/3/6), 3-channel optocoupler isolation outputs (Line 1/4/7), 1 RS-232 serial port)
	Power Supply	12 ~ 24 VDC
	Typical Power Consumption	10.0 W@12 VDC
Structure	Dimensions	354.1 mm × 65 mm × 123.4 mm
	Weight	1.6 kg
	Temperature	Operating temperature > -45°C; Storage temperature -30~80°C
	Humidity	20%~85%RH，no condensation
General Specifications	Software	3DMVS、CodePlatom
	Operating System	Windows 7/10/11 32/64bits
	Certification	CE
