Product Introduction

Thermal transfer printer for flexible packaging materials

The Videojet 6230 is a low-speed thermal transfer ribbon printer that utilizes innovative technology to reduce coding errors on flexible packaging, improving total cost of ownership (TCO) through a proven, cost-effective solution.
The Videojet 6230 features an intuitive 5" tablet touchscreen controller with the CLARiTY™ interface for easy operation.
Upgrade from dot-matrix printers to thermal transfer ribbon technology—eliminate warm-up time and save time and effort.
Code quality assurance is standard on the Videojet 6230 thermal transfer ribbon coder when using templates created with CLARiSOFT™ or VideojetConnect Design software. These simple code creation tools reduce operator intervention, minimizing operational errors and unnecessary product waste or rework.
Beyond its available features, the 6230 delivers high-quality coding at speeds up to 150 packages per minute, making it ideal for users migrating from analog solutions like thermal transfer and ink wheel coders to digital technology.

* A Bluetooth USB adapter is required when using the Videojet 6230 App. The Videojet 6230 printer must only use Videojet Bluetooth USB adapters certified by FCC or CE. Contact your local regulatory authority to determine if additional country-specific certifications are required in your region.

** The Videojet 6230 App supports Android operating systems version 4.4.4 (KitKat) or higher. When using the Videojet 6230 App, the Android phone should have Bluetooth network sharing enabled.

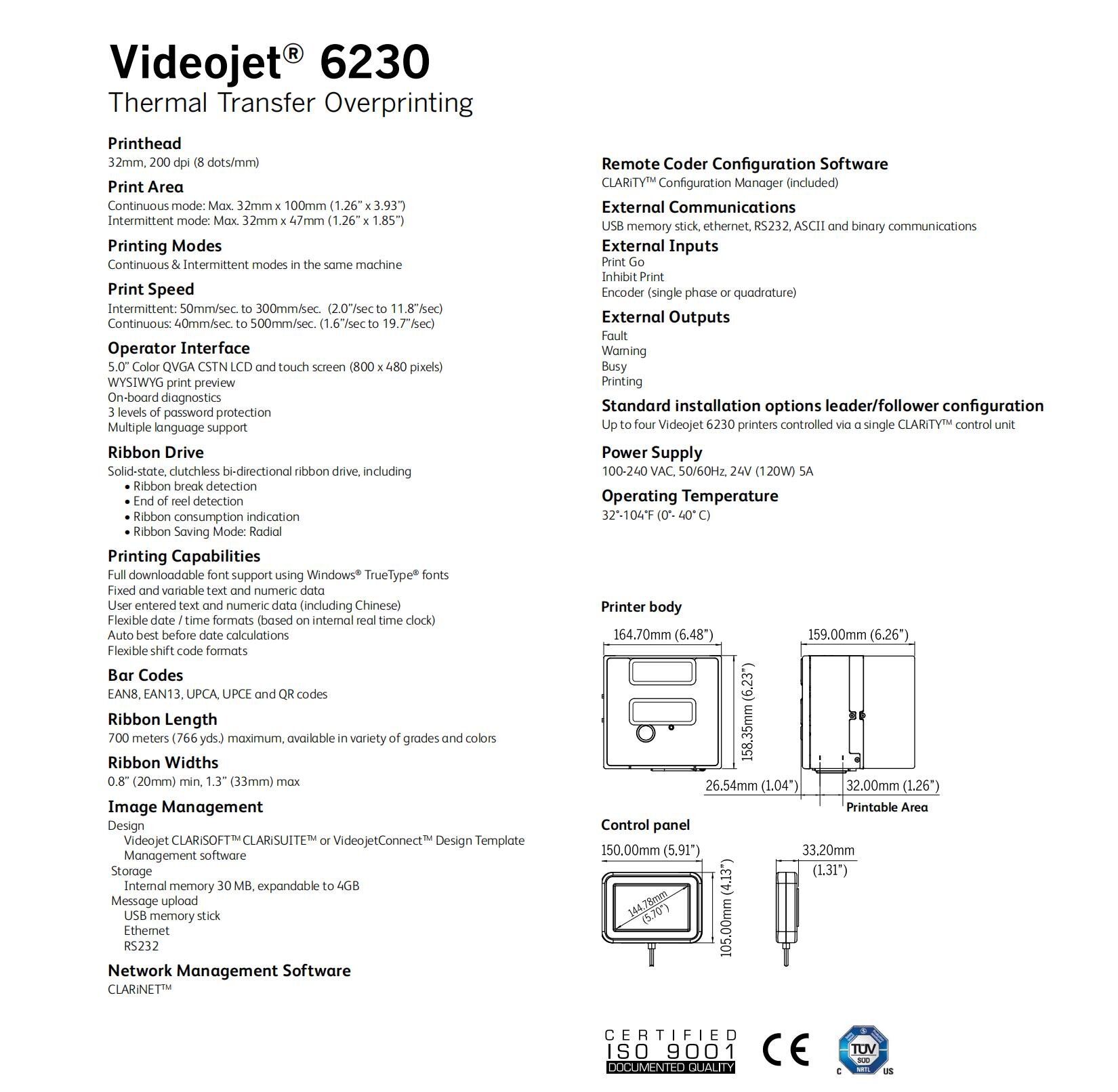

Product detailed parameters

Specifications	参数值
Printer Modes	Intermittent and Continuous Motion
Print Spacing	0.5 mm（0.020 inches）
Maximum Ribbon Length	5
Ribbon Width	Minimum：20 mm（0.8 inches） Maximum：33 mm（1.3 inches）
Continuous Mode:
Maximum Print Area (Width × Length)	32 mm x 100 mm （1.26 inches x 3.93 inches）
Maximum Print Speed	500 mm /s（19.7 inches/s）
Minimum Print Speed	40 mm/s（1.6 inches/s）
Intermittent Mode
Maximum Print Area (Width × Length)	32 mm x 47 mm（1.26 inches x 1.85 inches）
Maximum Print Speed	300 mm/s（11.8 inches/s）
Minimum Print Speed	50 mm/s（2.0 inches/s）
Barcode Printing	EAN8、EAN13、UPCA、UPCE 和 QR 码
Estimated Maximum Speed (Single-line printing, continuous mode)	150 Packs/Minute
User Interface	CLARiTY™ 5.0" Color QVGA CSTN LCD Touchscreen (800 x 480 pixels)
Master/Slave Functionality	(1 UI controls 4 printers) Control 4 Videojet 6230 printers via 1 CLARiTY controller
Standard Communications	USB flash drive, Ethernet, RS232, ASCII and binary communication
Bluetooth Connectivity	Only compatible with recommended Videojet Bluetooth USB adapter
