Product Introduction

Multi-head flexibility simplifies your production line space requirements
The Videojet 1610 Continuous Inkjet Dual-Head Printer expands the capabilities of the Videojet 1000 Series small character inkjet printers, delivering enhanced functionality for demanding production environments. This small character printer features two printheads, allowing operators to flexibly print more content on a given package; print at two separate locations on a single package; or print across two packaging lines in multi-line applications. Additionally, to meet diverse production demands and accommodate process complexity and material variety, Videojet offers other pigment-based printer models.

规格

Specifications	参数值
Print Head	2
Ink	Dye-based ink
Maximum Print Lines	5
Maximum Production Line Speed (1)	293 m/min (960 ft/min)
Environmental protection	IP65
Cartridge service life (maintenance interval)	Minimum 12,000 hours
Hose length	3 M（9.8 Feet）， Optional 6 M（19.6 Feet）
Message storage capacity	250
Smart Cartridge™ (Smart Cartridge)	Includes
Plug-and-play printhead module	Includes
USB	Includes
Communication	Ethernet and RS-232 Serial Interface
Positive Pressure/CleanFlow™ Cleaning Flow Technology	Includes
Expanded I/O Ports and Controls	#
Display (User Interface)	LCD with Membrane Keypad

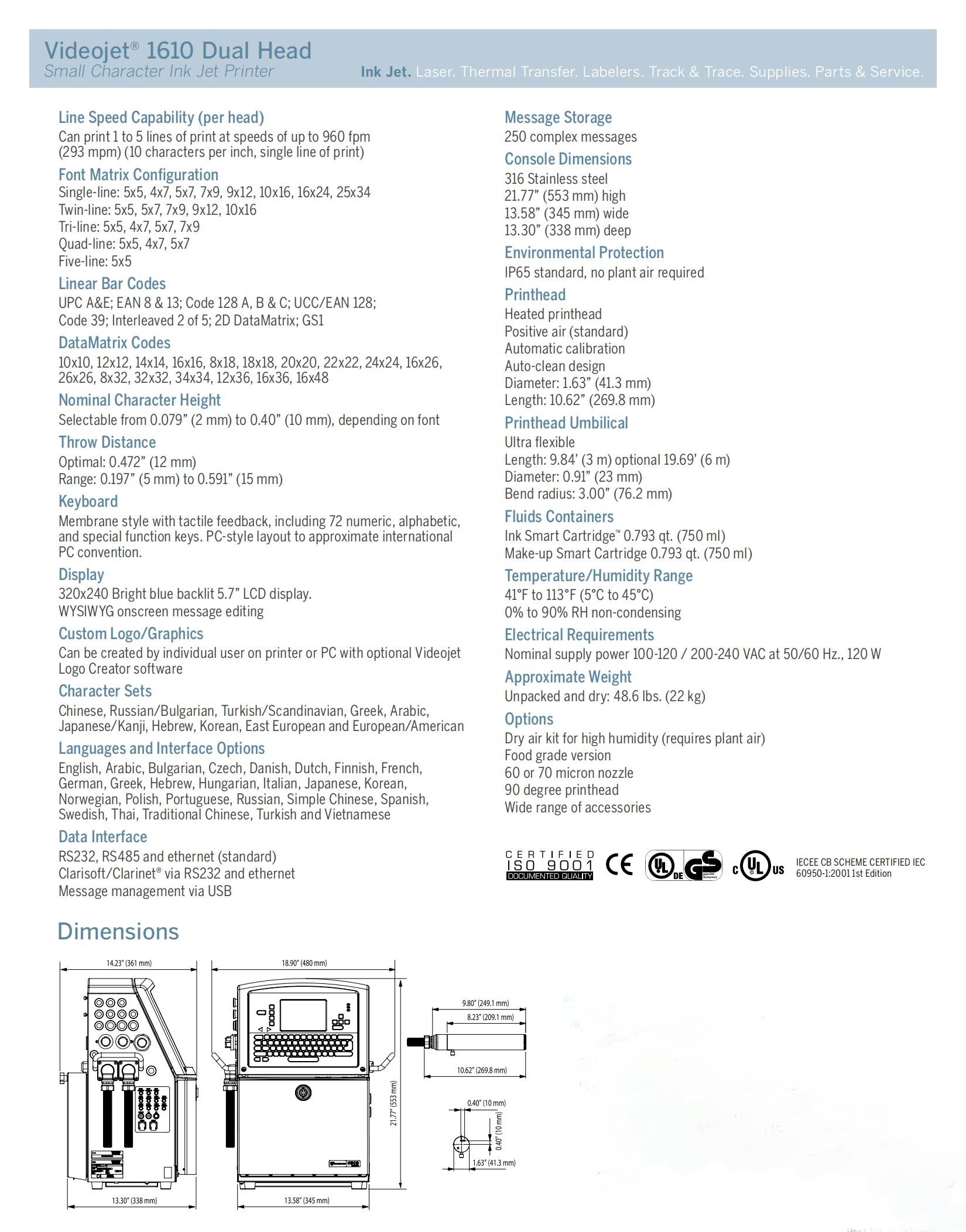

See the chart below for complete specifications (based on single-line printing at 10 characters per inch)

Dynamic Calibration™ fully automatic inkjet coders automatically adjust spray parameters to ensure high-quality printing.
Dual-head printers deliver single-head speed performance, enabling high-speed printing of up to 10 lines of text.
High-speed printing of 1 to 5 lines of text:
Single-line max speed = 293 m/min (960 ft/min)
Dual-line max speed = 146 m/min (480 ft/min)
Maximum speed for three lines = 81 m/min (265 ft/min)
