CE Series Area Scan Camera

Product Introduction

Key Feature

Adopts GigE interface and max. transmission distance of 100 meters without relay.

Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.

Supports hardware trigger, software trigger, free run, etc.

Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on protocol and standard.

Available Model

MV-CE013-80GM

*Product specifications may vary due to environmental factors. The company assumes no liability for any consequences arising therefrom.

Product detailed parameters

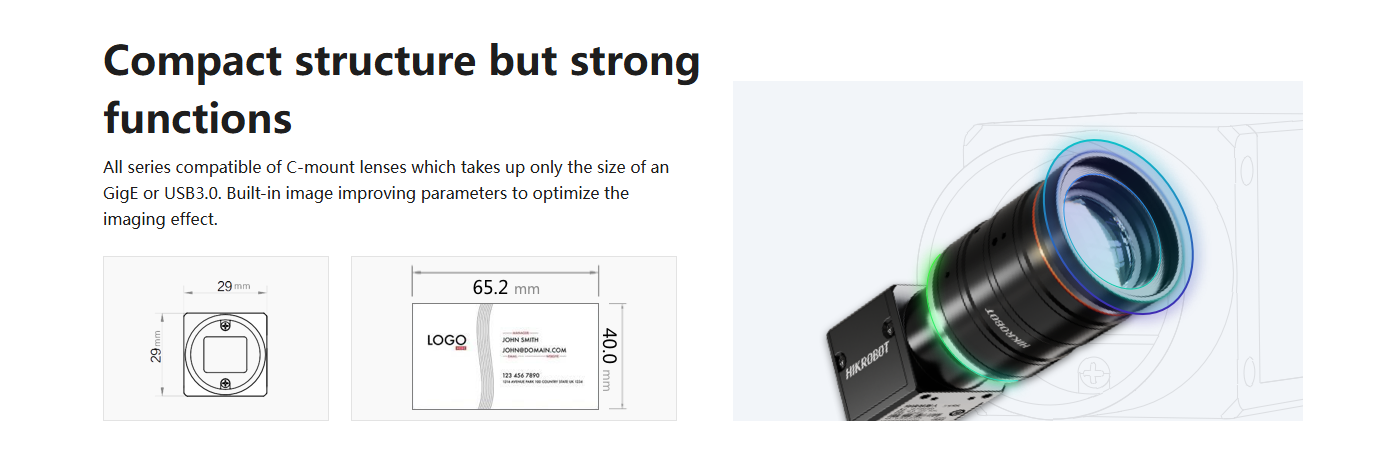

Dimensions


*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Specifications

Model	Product Model	MV-CE013-80GM
Model	Type	1.3MP Area Scan Camera, GigE, SS, Mono
Performance	Sensor type	CMOS, global shutter
	Sensor model	SS
	Pixel size	4.0 μm × 4.0 μm
	Sensor size	1/2.7"
	Resolution	1280 × 1024
	Max. frame rate	89.9 fps @ 1280 × 1024
	Dynamic range	60 dB
	SNR	40 dB
	Gain	0 dB to 20 dB
	Exposure time	31 μs to 1 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	Gigabit Ethernet, compatible with Fast Ethernet
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 2.4 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
	Weight	Approx. 96 g (0.21 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 80% RH (no condensation)
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS, KC
