CS Series Industrial Area-Scan Camera

Product Introduction

Key Feature

Adopts brand new design to reduce power consumption.

Compact design with mounting holes on panels for flexible mounting from 4 sides.

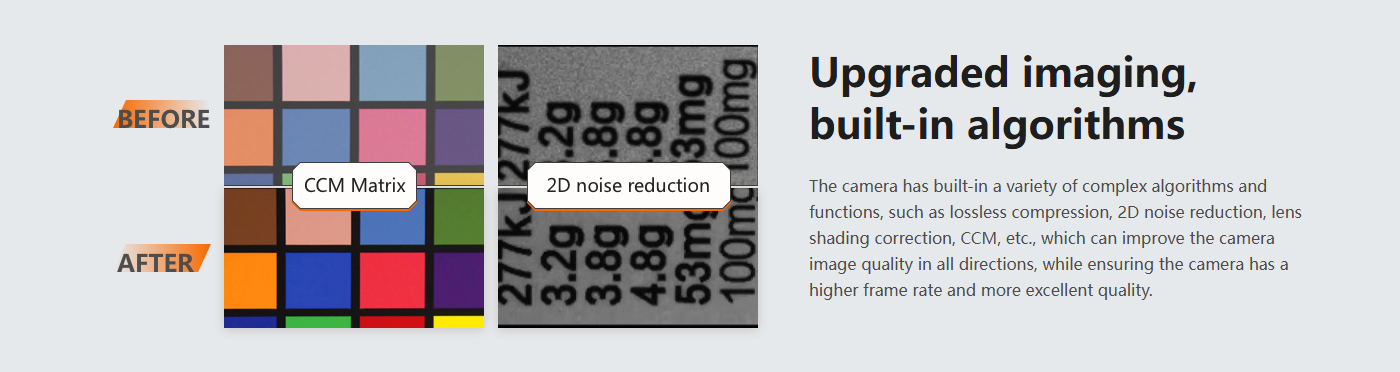

Supports noise reduction and color correction matrix function.

Supports auto or manual adjustment for gain, exposure time, LUT, Gamma correction, white balance, etc.

Adopts GigE interface and max. transmission distance of 100 meters without relay.

Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Available Model

MV-CS004-10GM

Product detailed parameters

Dimension


*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Specifications

Model	Product Model	MV-CS004-10GM
Model	Type	0.4MP Area Scan Camera,GigE,IMX297,Mono
Performance	Sensor type	CMOS, global shutter
	Sensor model	Sony® IMX297
	Pixel size	6.9 μm × 6.9 μm
	Sensor size	1/2.9"
	Resolution	720 × 540
	Max. frame rate	125.2 fps @ 720 × 540
	SNR	41 dB
	Gain	0 dB to 24 dB
	Exposure time	UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	Gigabit Ethernet, compatible with Fast Ethernet
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 2.2 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 100 g (0.22 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 80% RH (no condensation)
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
EMVA data（typical）	Quantum efficiency	68.8%
	Dark noise	6.4 e-@10-bit
	Signal-to-noise ratio	39.7 dB
	Saturation capacity	9.4 ke-
	Dynamic range	62.3 dB
