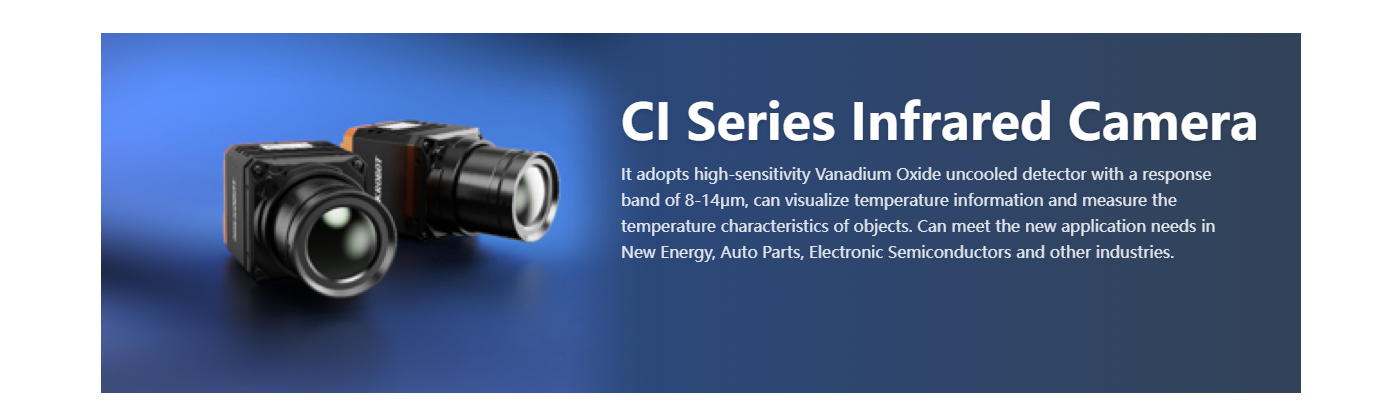

CI Series Infrared Camera

Product Introduction

Key Feature

Adopts high-sensitivity vanadium oxide uncooled detector with 0.3 MP.

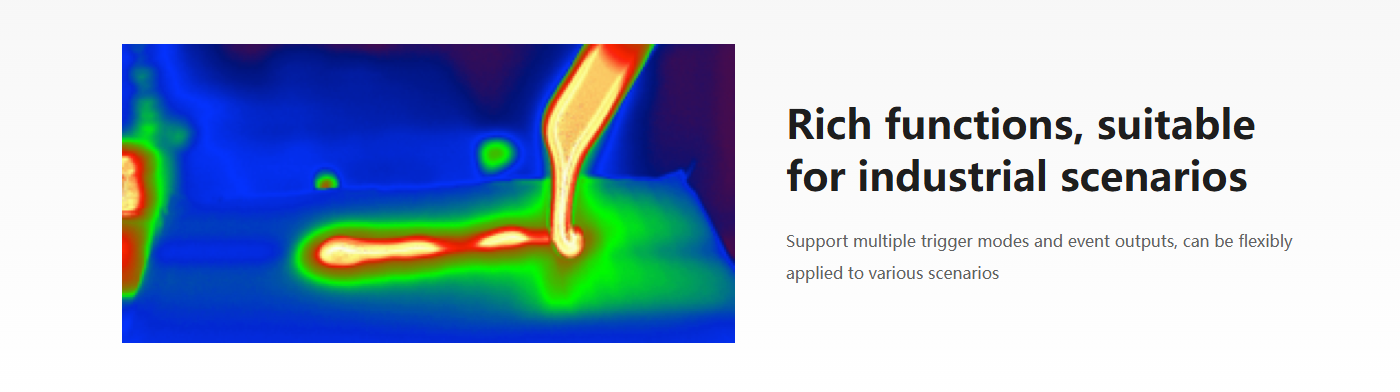

Supports multiple palette modes, grayscale detection, image adjustment, etc.

Compact design with mounting holes on panels for flexible mounting from 4 sides.

Adopts GigE interface and max. transmission distance of 100 meters without relay.

Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Available Model

MV-CI003-GL-N6

*Product specifications may vary due to environmental factors. The company assumes no liability for any consequences arising therefrom.

Product detailed parameters

Dimensions


*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

Specifications

Model	Product Model	MV-CI003-GL-N6
Model	Type	0.3MP LWIR Camera，GigE，EFL 6.3mm
Performance	Sensor type	Vanadium oxide uncooled detector
	Pixel size	17 μm
	Resolution	640 × 512
	Max. frame rate	50 fps @640 × 512
	NETD	< 35 mk (F1.0, 25 °C)
	Response time	< 10 ms
	Pixel format	Mono 8/12/14, YUV422_YUYV_Packed
	Color palettes	White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue
	Image process	Supports brightness, contrast, image detail strength, digital noise reduction (spatial and temporal)
	Focal length	6.3 mm
	Field of view	88.5° × 73.2°
	Min. operation distance	0.1 m
Electrical feature	Data interface	Gigabit Ethernet, compatible with Fast Ethernet
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 2.5 W@12 VDC
Mechanical	Lens mount	M34*0.75
	Dimension	58 mm × 58 mm × 115.5 mm (2.3" × 2.3" × 4.5")
	Weight	Approx. 275 g (0.6 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 90% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
