Product Introduction

Key Feature

1. Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.

2. Integrates VM functions and supports more than 140 algorithms.

3. Adopts multiple I/O interfaces, such as multiple input/output signals.

4. Supports multiple communication protocols.

5. Supports indicators displaying device status for easy debugging and maintenance.

6. Supports ingress protection IP67.

Available Model

MV-SC5020XM-00C-NNN

*Product specifications may vary due to environmental factors. The company assumes no liability for any resulting consequences.




Dimensions and Parameters

Model	Product Model	MV-SC5050XM-00C-NNN

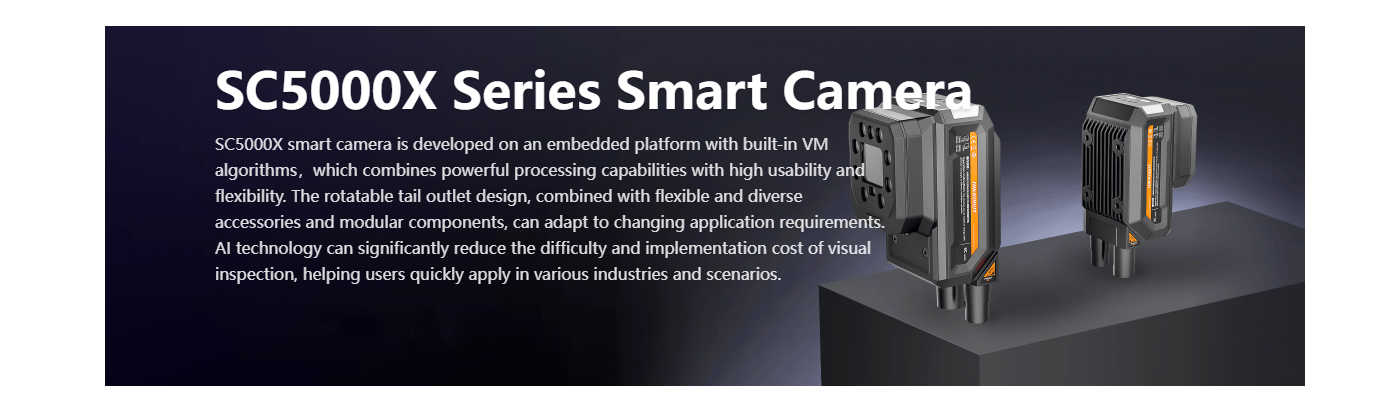

Model	Type	SC5000X series Smart Camera, C-Mount Lens，5MP，Mono
Tool	Function module	Vision Master Platform (include deep learning module)
Tool	Communication protocol	TCP, UDP, Modbus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Camera	Sensor type	CMOS, global shutter
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1/1.45"
	Resolution	2432 × 2048
	Max. frame rate	60 fps
	Gain	0 dB to 37 dB
	Exposure time	15 μs to 1 sec
	Pixel format	Mono 8
	Mono/color	Mono
Platform	Memory	8 GB
Platform	Storage	64 GB
Electrical feature	Data interface	Gigabit Ethernet (1000 Mbit/s)
	Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input × 3 (Line 0/1/2), opto-isolated output × 3 (Line 3/4/5), RS-232 × 1
	Power supply	24 VDC
	Power consumption	Typ. 10 W @ 24 VDC Max. 14.4 W @ 24 VDC
Mechanical	Lens mount	C-mount
	Lens cap	Transparent lens cap
	Light source	Not included
	Indicator	Power indicator (PWR), network indicator (LNK), and user-defined indicator (U1/U2)

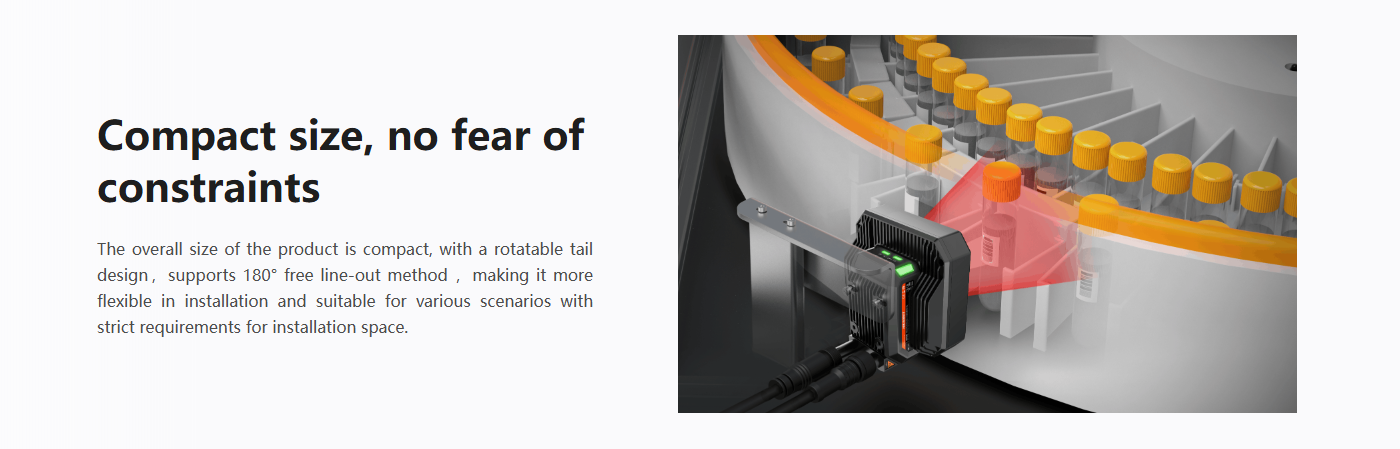

	Dimension	Straight angle: 112.3 mm × 54 mm × 110 mm (4.4" × 2.1" × 4.3") Right angle: 88.7 mm × 54 mm × 110 mm (3.5" × 2.1" × 4.3")
	Weight	Approx. 370 g (0.8 lb.)
	Ingress protection	IP67 (under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Certification	CE, KC
