| Model | Model | MV-SC3013XC-05M-MED |
| Name | SC3000X Medical Visual Sensor, 5mm Lens, 1.3MP, Color, Motorized Focus |
| Tools | Vision Tools | Measurement: point measurement, liquid level measurement, contrast measurement, gray area measurement, pitch measurement, width measurement, brightness average measurement, line angle measurement, color measurement, color area measurement, diameter measurement, straight line angle measurement;

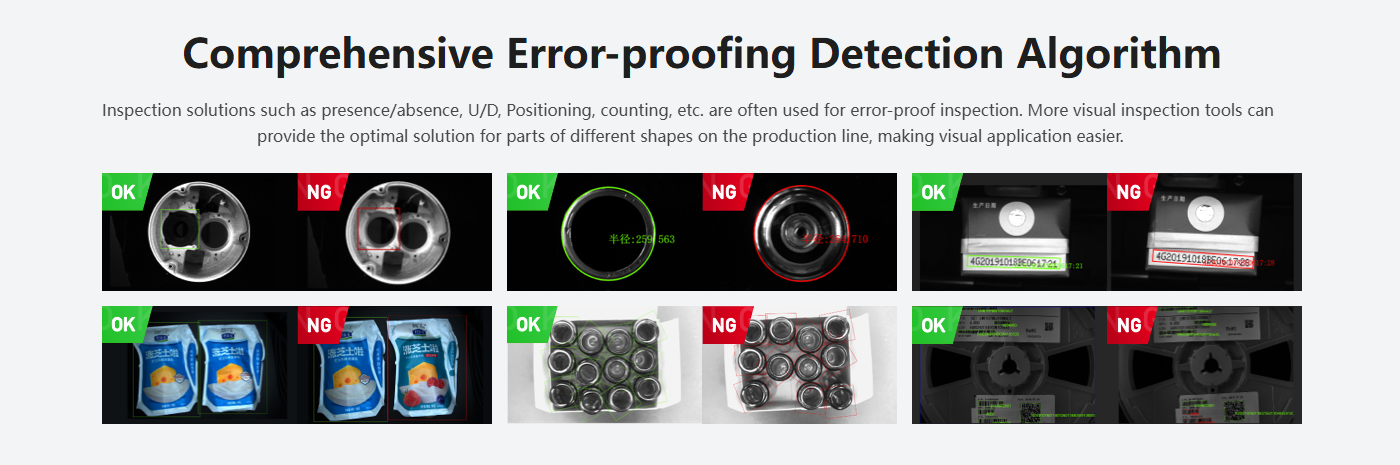

Presence/absence: spot presence/absence, edge presence/absence, contour presence/absence, pattern presence/absence, square presence/absence, straight line presence/absence;
Counting: spot counting, edge counting, contour counting, pattern counting, color counting;
Recognition: code recognition, blood sample recognition, color comparison, color recognition, registration classification, registered target detection, character recognition;
Logic: Json format output, variable calculation, branch control, logic judgment, condition judgment, character comparison, combination judgment;
Positioning: unit conversion, position correction; Deep learning: classification, target detection |
| Solution Capability | Supports solution import/export, can store up to 32 solutions |
| Communication Protocol | RS-232、TCP、UDP、FTP、PROFINET、Modbus、EtherNet/IP、MELSEC/SLMP、FINS、Keyence KV |
| Camera | Sensor Type | CMOS, global shutter |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/2.9" |
| Resolution | 1216 × 1024 |
| Maximum Acquisition Frame Rate | 100 fps |
| Dynamic Range | 74 dB |
| Signal - to - Noise Ratio | 41 dB |
| Gain | 0 dB ~ 15 dB |
| Exposure Time | 16 μs ~1 sec |
| Pixel Format | RGB 8,Mono 8 |
| Black/Color | Color |
| Electrical Characteristics | Data Interface | Fast Ethernet(100 Mbit/s) |
| Digital I/O | 17 - pin M12 interface provides power and I/O, including 3 optocoupler isolated inputs (LINE0/1/2), 3 optocoupler isolated outputs (LINE3/4/5), 1 RS - 232 interface. The output signal NPN/PNP type is configurable |
| Power Supply | 24 VDC |
| Typical Power Consumption | 6.5 W@24 VDC |
| Structure | Lens Interface | M12-mount, mechanical focus |
| Focal Length | 5 mm |
| Lens Hood | Fully polarized lens hood |

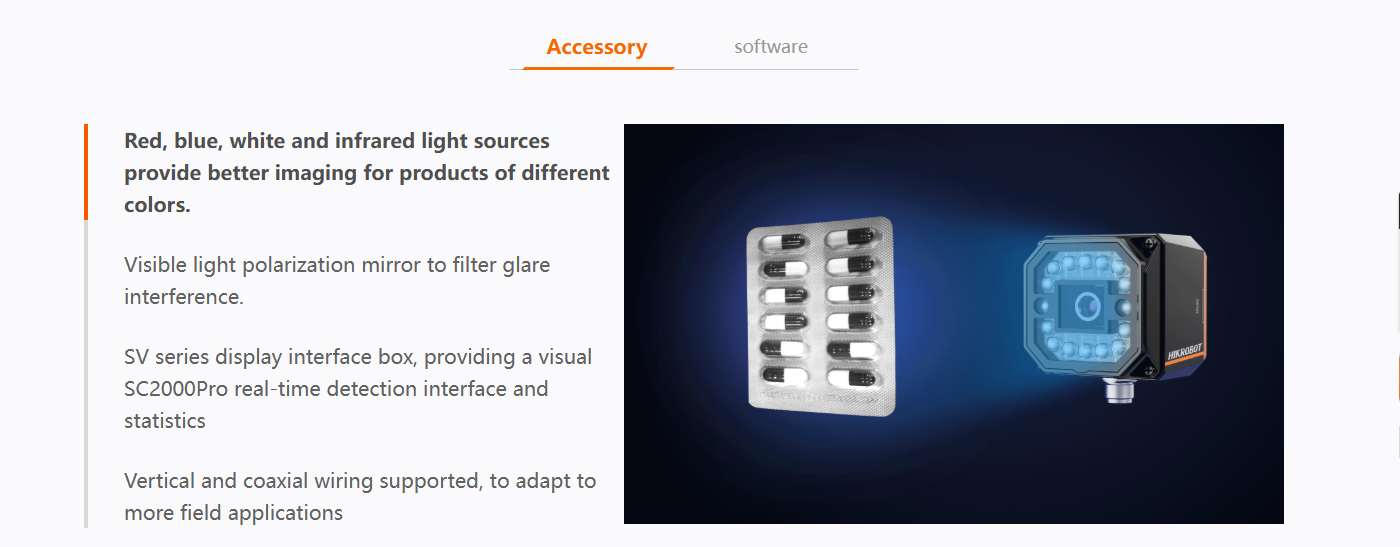

| Light Source | Condensed white light, optional red light/blue light/infrared light |
| Aimer | Orange LED |
| Indicators | Multi - angle visible body indicator light |
| Dimensions | 43 mm × 57 mm × 45.9 mm |
| Weight | Approximately 200 g |
| IP Protection Rating | IP65 |
| Temperature | Operating temperature 0 - 40°C; Storage temperature - 30 - 70°C |
| Humidity | 20% ~ 95%RH，no condensation |

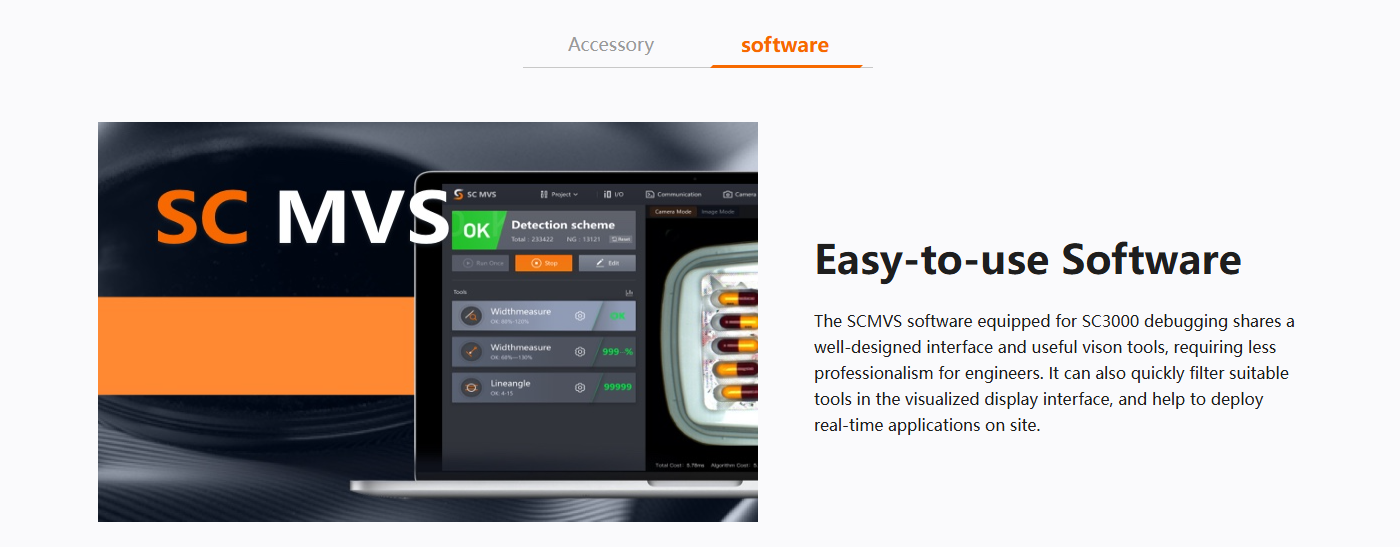

| General Specifications | Software | SCMVS |
| Certification | CE,KC |
